This is page 7 of the Alpha Jet Exhibit Showing the MB10 N Fully Automated Ejection Seats and Ejection Seat Operation.

The question is, " How do ejection seats work and what is the ejection process?"   This page covers the ejection seat and ejection process from the Belgian Alpha Jet, even though other ejection (egress) processes work similar, other aircraft may use different ejection processes.
Home  Exhibit Index A-7 Corsair II  Alpha Jet North Pole Exhibits Baka Bomb
Deane Kesterson Five Miles Gee Bee Aircraft Inaki Ruiz Jeff Dyrek Story Stolen P-40
One More Mission Patco Pitts Exhibits P-51 Mustang Poland to Pullman Short Straw
Siamak Hatami  South Pole Expedition Space Shuttle Doug Keller USS Kitty Hawk 34th Fighter Squadron
413th Fighter Group Famous People Corvettes  North Pole Cruises  Willow Run
  .... Go to the Alpha Jet Home Page    |    Go to the next page in the exhibit....
Airplane Books   *   Airplane Models   *   Airplane Movies  *   Airplane Calendars   *   Camaros for Sale   *   Aviation Exhibits



This is another photo from the Book

20 years of Alpha Jet
in the Belgian Air Force


by Marc Arys

Continue the Alpha Jet Tour Below

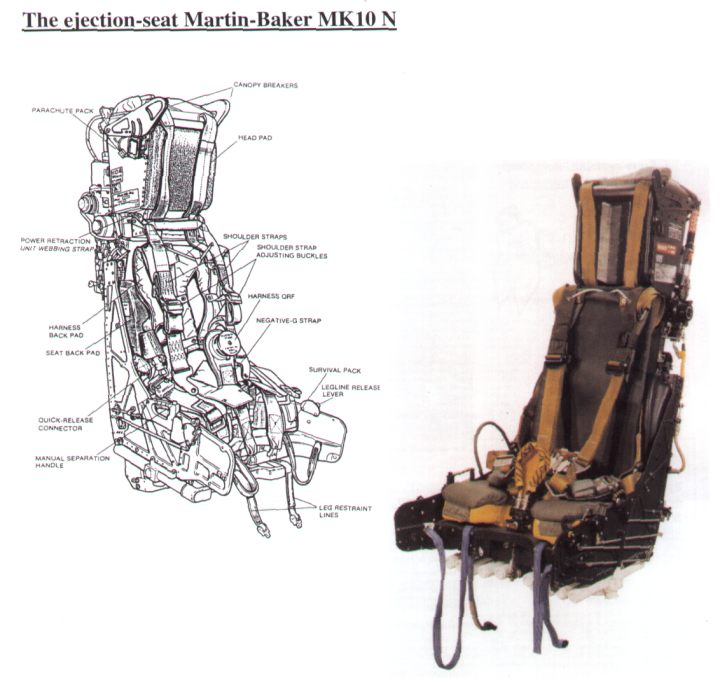

a photo showing the ejection seat and all of its parts
Click on Image for Larger View
Scanned by C. Jeff Dyrek

The Alpha Jet Instrument panel drawing



Continue the Alpha Jet Tour Below

The MB10 N is a fully automated lightweight ejection seat.

designed for a safe ejection at any altitude between 0 and 50,000 ft, a bank till 70 degrees and speeds ranging from 0 to a maximum of 600 kts.

Click Here's how the ejection process works.

  • 0.00 sec    Ejection Initiated
  • 0.25 sec    Rocket ignition.  Emergency oxygen on.  Limb restraint complete.  Aircraft IFF activated.  (See IFF operation)
  • 0.45 sec    The Rocket Motor burns out
  • 0.50 sec    Drogue gun fires
  • 1.00 sec    Stabilization
  • 1.50 sec    Parachute Deployment  N < 3g   H < 5000 m
  • 2.65 sec    Parachute fully deployed,  locater beacon activated.  Life raft auto inflation armed.


Webmasters Note:  While I was in the Navy I took a High Altitude and Ejection Seat Training for the TA-4 Skyhawk.Look at the times above.  We watched several movies on the ejection seat process, then, the narrator on the film said these photos, which looked at a believable speed, were slowed down, we will now see the ejection sequence at the actual speed.  It was unbelievably fast.  The actual sequence was so fast that it looked like it was a photo off of some stupid movie where the director wasn't paying attention to the speed effects.  The times above explain how fast the pilot actually leaves the aircraft.  Also, not mentioned above, this seat is said to have a Zero, Zero, capability.  The pilot is safe to eject at Zero MPH and Zero Altitude.
