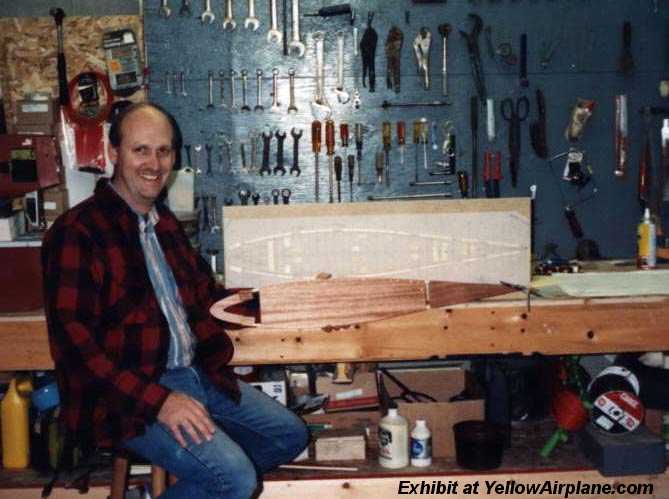

This Photo is of a Compression Rib on the Pitts Aerobatic Aircraft.

This Pitts was built by Chuck Roberts
Photo by Chuck Roberts



Previous Pitts Picture
Go To Chuck Roberts Pitts Page
Next Pitts Picture

    Pitts Aerobatic Home

There are basically two types of wing ribs,
the Compression Rib and a Standard Rib.
The Compression Rib is built with Mahogany sides
like the one that Chuck is holding above.

I immediately started cutting out all the pieces for the bottom wing ribs. Glued them together then started making the jig for the top ribs. When all the ribs were finished I set them aside.
